Loops in Pentaho Data Integration

Loops in PDI

If only there was a Loop Component in PDI *sigh*.

But we can achieve Looping Easily with the Help of few PDI Components. Let’s take a requirement of having to send mails. Now if the mails id and files to be sent where fixed we could just use a property file and send the mail id’s as a parameter.

but here mail ids will be coming in from a Table source and then mail id’s can never be the same.
So how did i approach this?

Make data easy with Helical Insight.
Helical Insight is world's best open source business intelligence tool.

Click Here to Free Download

let’s say mail id’s are from Table: mail_address so now my aim here is to first add a row number to each record line and a Maxcount of all the records at each line, *Keep In Mind of the Maxcount*

and then pass it as a filter clause

where row_number = 1

now my assumption is the query should execute and return one row and then the column values like sender mail, receiver mail will be set into a variable and then passed to a Mail Transformation Component;

But how can we increase the value of the Where clause i.e how can we make

where row_number = 1 to

where row_number = 2

where row_number = 3 and so on.

So here is were Looping is required tp we take a variable and increment the value.

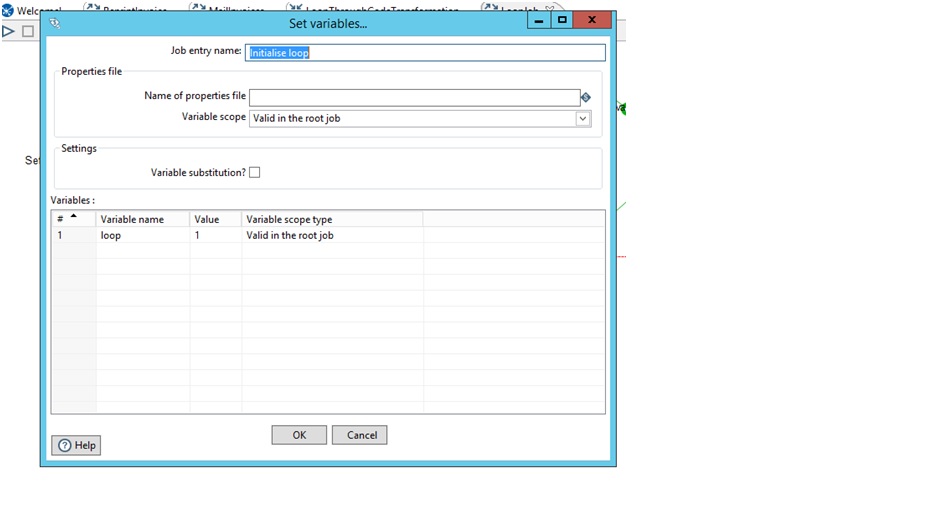

1. Take a Set Variable at the Job Level [Initialize Loop] and then set a variable loop and assign the value to your initial value as shown below: In My case loop value = 1

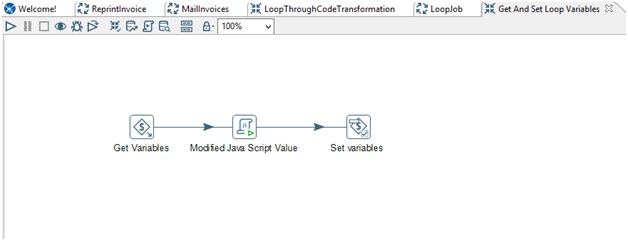

Now next take a Transformation to get the variables and set the variables as shown below:

Now in my scenario I have a Modified JS because few conversions were required hence after that set the variable.

Next We need Transformation where we pass our variable of loop into our Query
as shown below

SELECT * FROM (
SELECT *,ROW_NUMBER() OVER (Order by createfolderpath) as row_num,COUNT(dummy)           OVER (partition by dummy) as maxcount FROM (SELECT * FROM
(
SELECT DISTINCT replace(createfolderpath ,’/’,’\’) as createfolderpath,1 as dummy
FROM reportpaths
)base
)base2
Cross JOIN [TEST_SLSDMBKP].[dbo].[job_mailing_address]
WHERE
scheduled_flag = ‘Y’
)base3
WHERE
row_num = ${loop}
ORDER BY row_num,receivers_email,createfolderpath

Now here in my table input, 1 row will be the output so hence I pass the required columns into the Modified JS and then Set them as Variables.

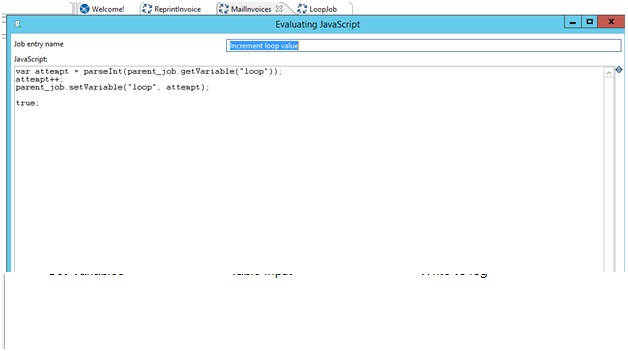

Next at our Job Level we use a JavaScript Component to increment the loop value to 2 as shown above.

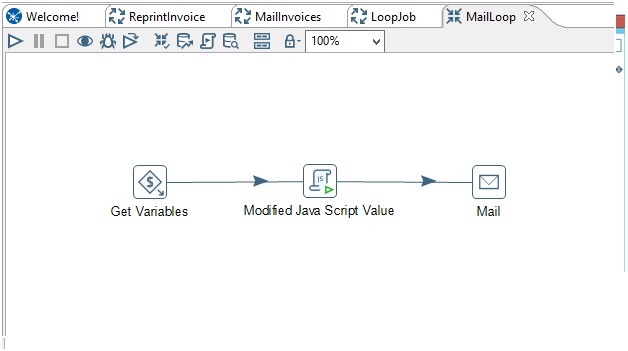

Next at our Job Level we add a new transformation which does our requirement of Sending Mails as shown below:

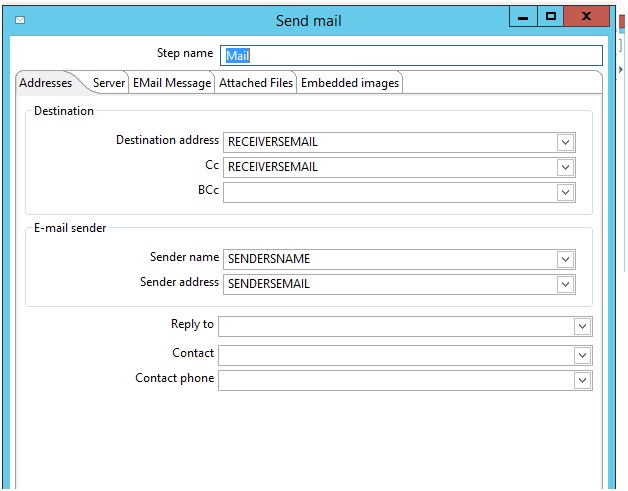

And we pass all the required variables into the Mail Component as shown below:

RECEVIERSEMAIL and all are values from our DB we Set as Variables.

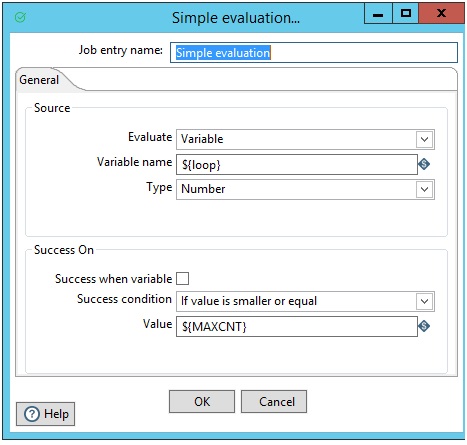

After that we go to our JOB Level and we use a Simple Evaluation Component

Make data easy with Helical Insight.
Helical Insight is world's best open source business intelligence tool.

Click Here to Free Download

To stop the Loop after a particular condition

Now ${MAXCNT} is the  Maxcount of all the records at each line from our Query we sent as variable

Now once loop number is 6 and Maxcount is  5 then it stops the loop and ends else

It continues and goes to the next Component which is Wait Component which in a previous blog it was specified the importance of a WAIT Component.

So that’s it we went through looping in PDI.

Best Open Source Business Intelligence Software Helical Insight is Here

A Business Intelligence Framework

Free
Download

Hence if we have any other approach, please feel free to drop it in the comment below

Thanks
Sohail Izebhijie
