Creating User Input Variables in a Power BI Report

Requirements: In a report, a user should have the flexibility to enter the input number and that number should filter the data. In Power BI reports, we can create slicer with input number and we have options to choose either single-select or multi-select but we do not have the option to enter the number.

This blog will provide the steps to create a user input variable and how it can be used as a filter in the report.

Prerequisites: Power BI Desktop

Sample Employee Details file attached below

1. Open Power BI desktop
2. Click on Get Data, select Excel and Load the employee details file into power bi desktop

Make data easy with Helical Insight.
Helical Insight is world's best open source business intelligence tool.

Click Here to Free Download

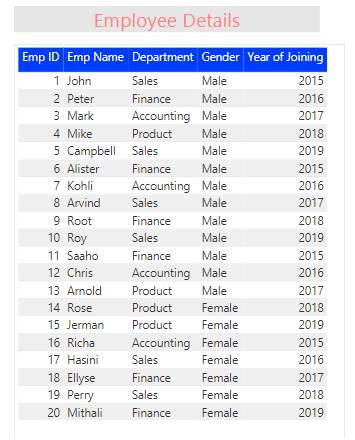

3. Create a simple tabular report with all employee details



4. Using slicer visual, we can create either single select or multi select year filter. See the below image



5. But the requirement is to create a single user input parameter which can be used to enter input value like below



To create like this follow below steps

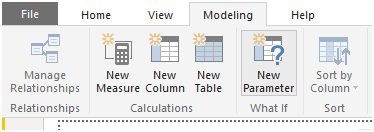

6. In top header ribbon, choose Modeling and click on “What If” parameter



Make data easy with Helical Insight.
Helical Insight is world's best open source business intelligence tool.

Grab The Free Trail

7. New window will open, here we have enter few details like parameter name, data type, minimum and maximum number, increment value and default value. Select add slicer to the page and Click on OK



8. Above step will create new table in the report and will add slicer to the report page. Here we can enter the values with in that range and we can also use the slicer to change the value. We have the option to remove slicer also



9. Now we have the slicer and report but when the slicer value change report will not get affect as there is no relationship between these two
10. Click on “Manage Relationships” in Home ribbon. Add the relationship between these two tables

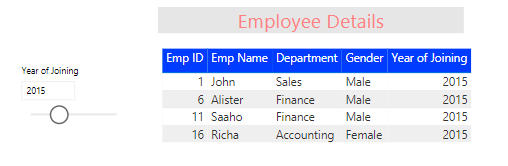

11. Click on OK. Now report will show data for default value selected. Change the slider on filter or enter value to check the data for that year

Make data easy with Helical Insight.
Helical Insight is world's best open source business intelligence tool.

Get your 30 Days Trail Version

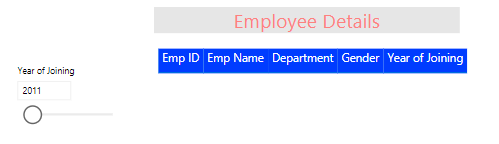

12. We can see in the above images that employee details were shown for the selected year and if there is no data for the selected year it will show blank.

In case if you have any queries please get us at support@helicaltech.com

Thank You
Ramu Vudugula
BI Developer
